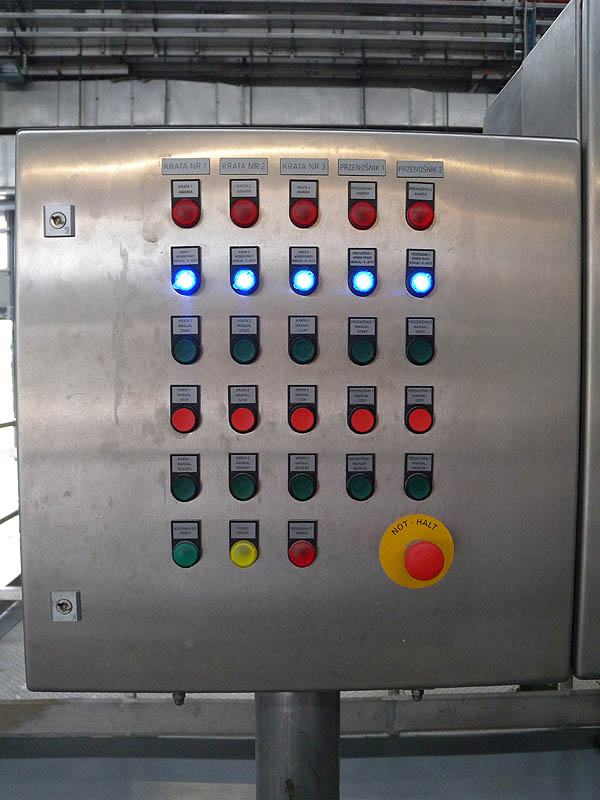

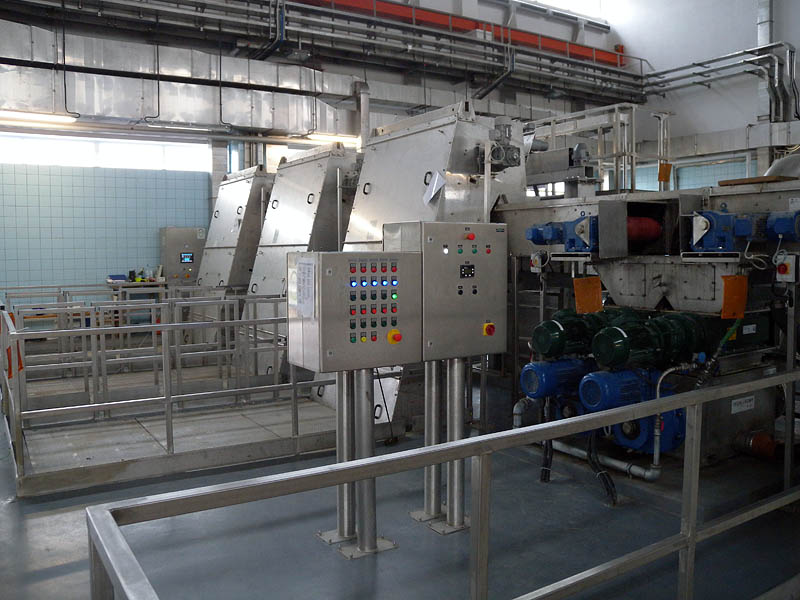

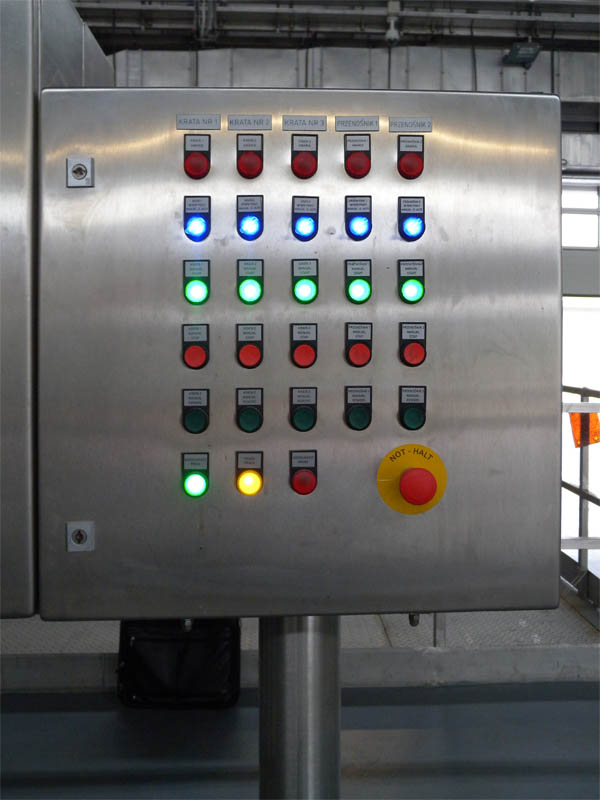

Zakres zadań:
Wykonanie systemu sterowania krat mechanicznych
Data rozpoczęcia:
2012
Data zakończenia:
2012
Opis:
Zakres prac:

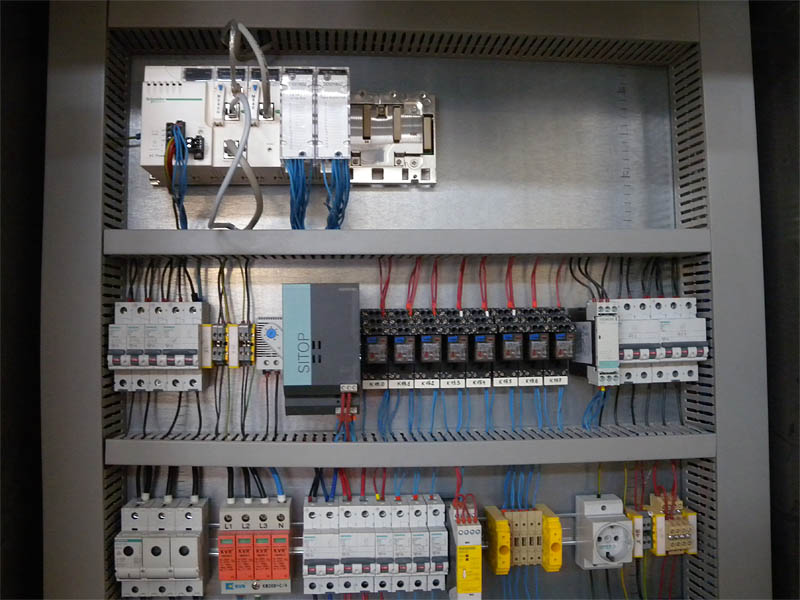

- wykonanie systemu sterowania zespołu sześciu krat mechanicznych Profilter
- wykonanie układu pomiaru poziomu ścieków przed i za kratami

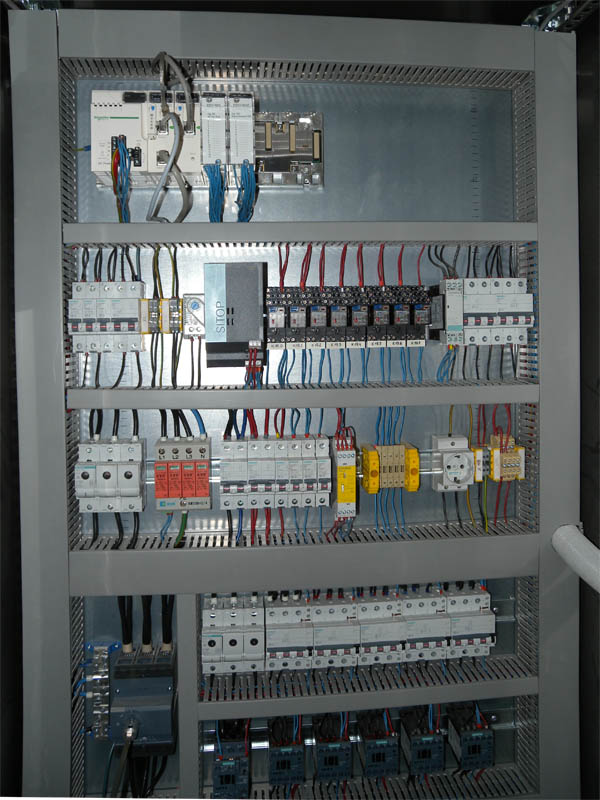

Sterowanie krat mechanicznych wykonane zostało na dwóch sterownikach Schneider Modicon M340 oraz układach rozproszonych wejść/wyjść.

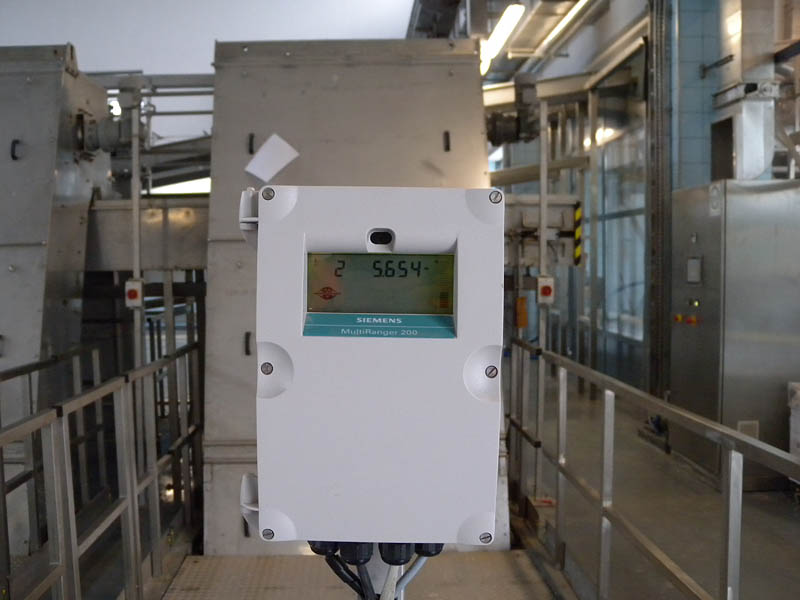

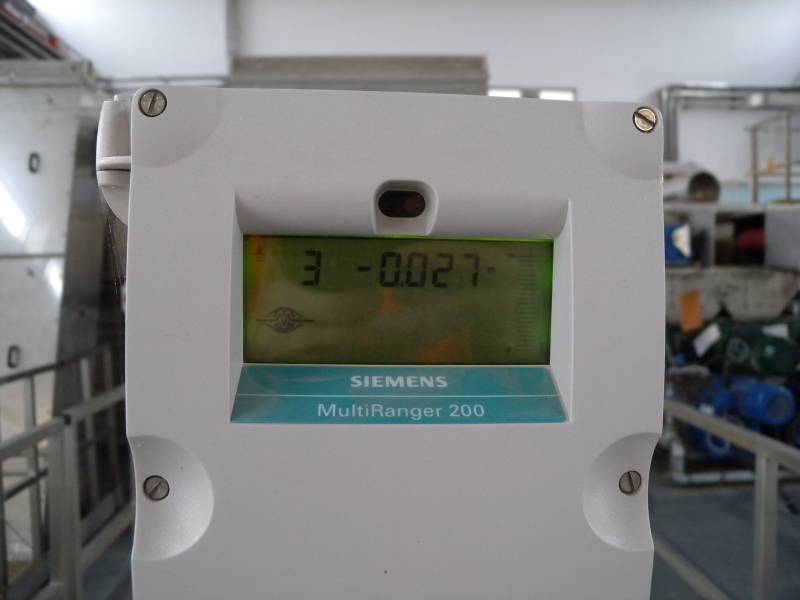

Pomiar poziomu realizowany jest przy pomocy sond ultradzwiękowych Siemens oraz przetwornikach poziomu MultiRanger.

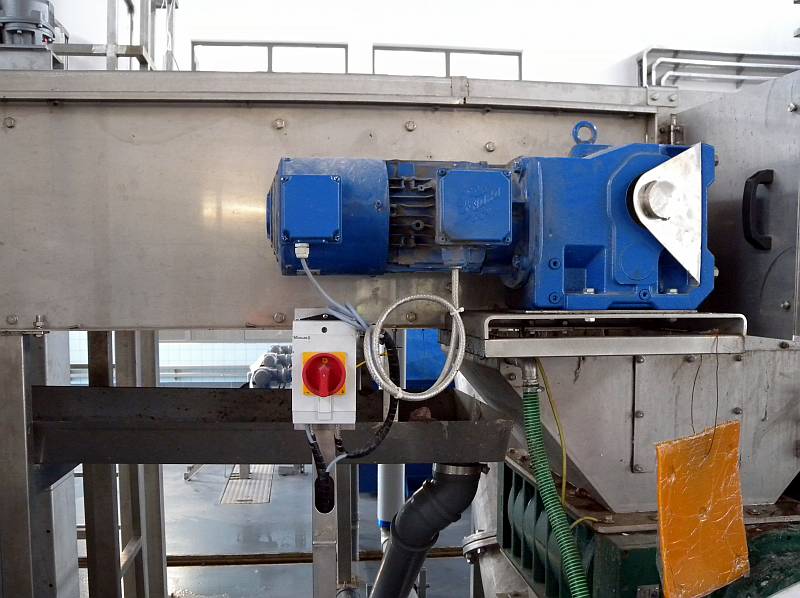

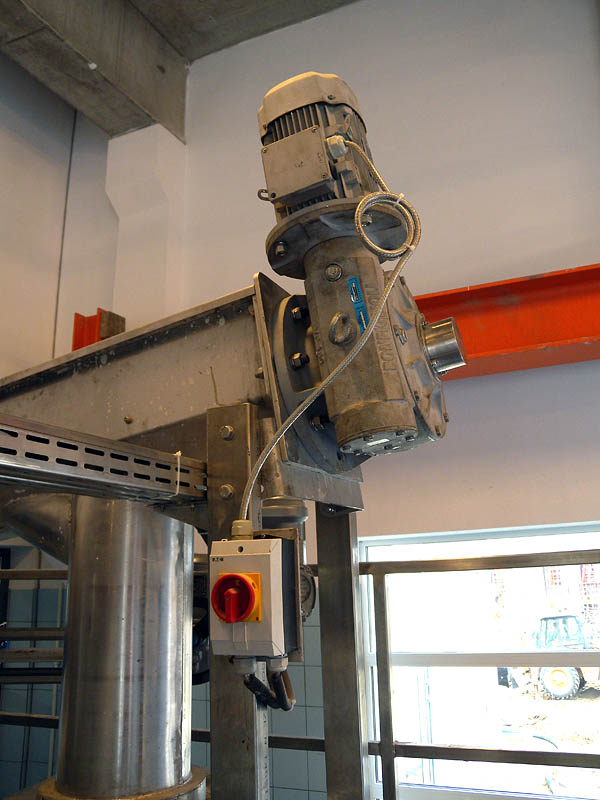

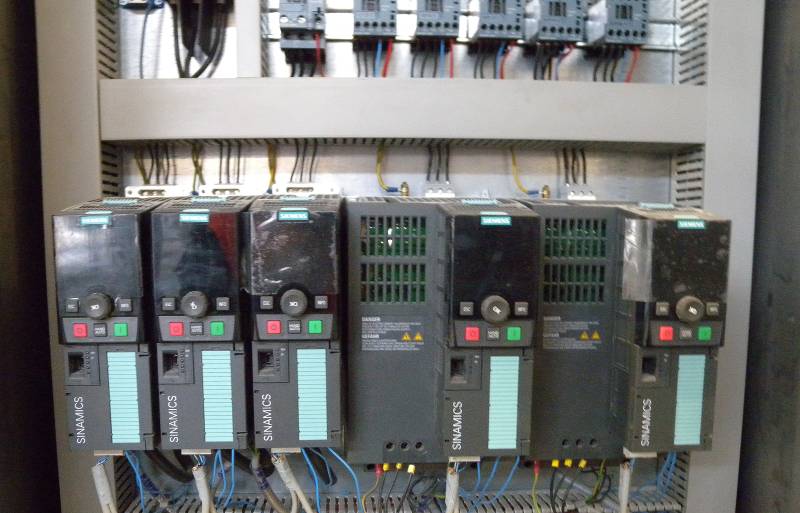

Prędkość obrotowa krat mechanicznych, przenośników taśmowych transportujących skratki do rozdrabniaczy oraz przenośników ślimakowych może być regulowana dzięki sterowaniu wektorowemu bezczujnikowemu przy użyciu przetwornic częstotliwości Siemens SINAMICS G120.

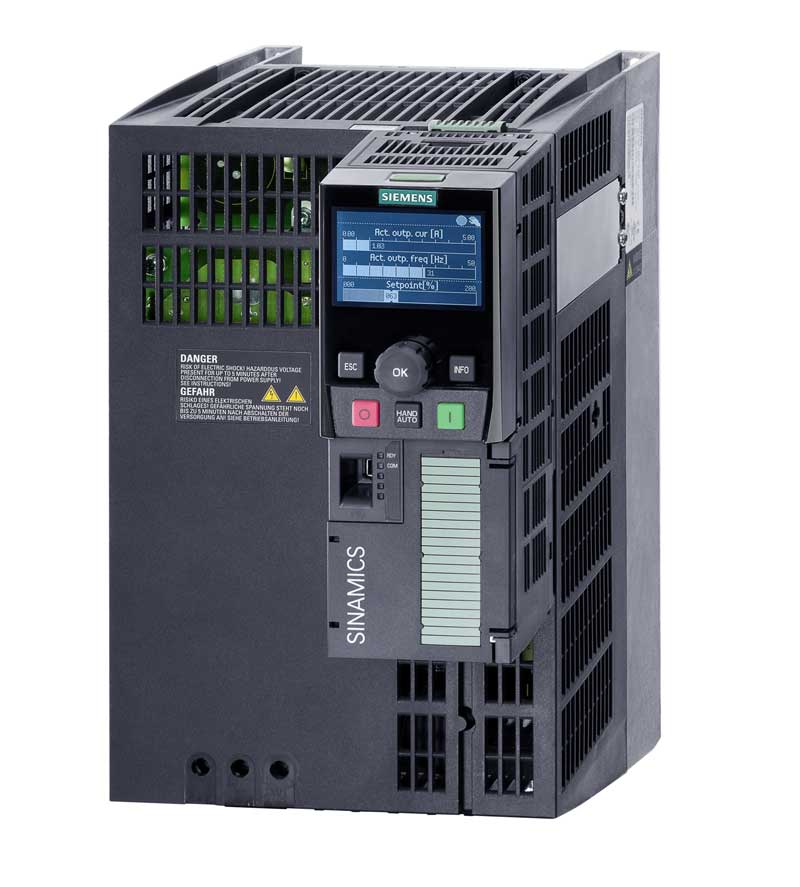

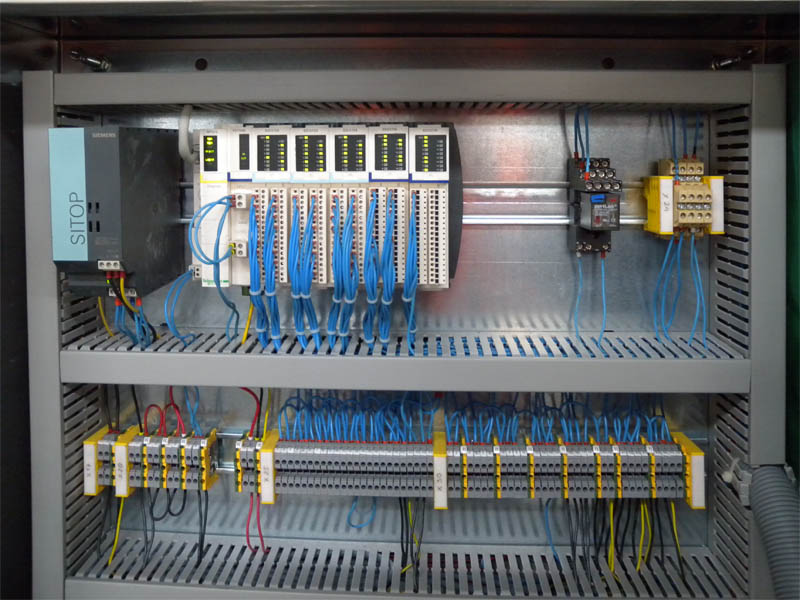

Komunikacja sterownika PLC zarówno z przetwornicami częstotliwości jak i przetwornikami poziomu realizowana jest przy pomocy sieci Modbus RTU.

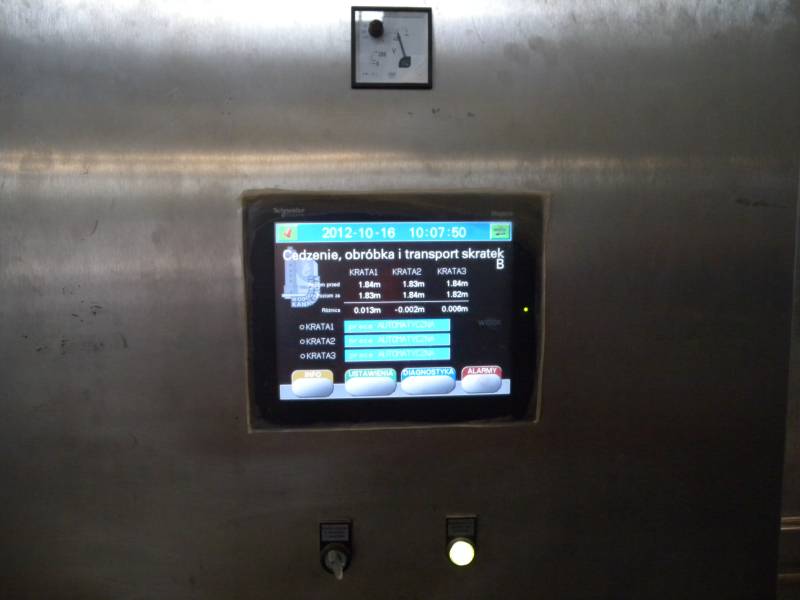

Wizualizacja stanu pracy krat, różnicy poziomów wody przed i za kratami, parametrów pracy oraz wprowadzanie nastaw możliwe jest dzięki wykorzystaniu dużych, kolorowych, dotykowych paneli operatorskich Schneider XBTGT5330.
kraty mechaniczne | sterowanie | Siemens SINAMICS G120 | Schneider Modicon M340 | Schneider XBT | Modbus RTU | panele operatorskie HMI | oczyszczalnia scieków Czajka | kolektor dolotowy | Zakład Farysa | sonda ultradźwiękowa | Siemens Multiranger 200
